Jenny Fire Sprinkler Air Compressor

You are here: Home > Stationary > Fire Sprinkler Stationary Air Compressors


Download and Print Fire Sprinkler Stationary Air Compressors Literature

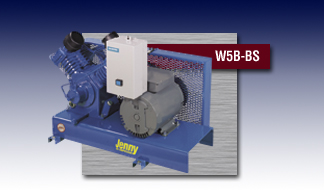

Jenny Fire Sprinkler Air Compressor - Model W5B-BS

Base Plated Mounted
Standard Features
  • Heavy-duty single stage cast iron compressor pump - Made in Somerset, PA USA
  • Splash lubricated
  • Belt driven with a large flywheel for extra cooling and easier start-up
  • Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
  • Directional air shroud for reduced pump temperatures
  • Thermal overload motor protection
  • Totally enclosed heavy-duty beltguard
  • Powder coated, extra heavy steel base plate
  • Large canister intake filter with replaceable filter elements
  • Magnetic starter is included on all 5HP and larger units
  • Industrial/Commercial grade UL Listed electric motor
  • Thermal overload motor protection Base Mounted

Base Mounted
System Size Maximum Gallons in system to be pumped to 40 PSI in 30 Minutes

Optional
Auto
Control
Group
Model
Pump
HP
Power Supply
Pump RPM
CFM del'd @ 40 PSI
220
F13S-BS
F
1/3
115 Volt
(through 2 HP)
or 230 Volt
1 Phase
208, 230,
460 or
575 Volt
3 Phase
670
2.9
ACGF
290
F12S-BS
1/2
950
3.8
350
F34S-BS
3/4
1200
4.4
425
K34S-BS
K
520
5.3
ACGK
480
F1S-BS
F
1
1430
6.0
ACGF
600
K1S-BS
K
790
7.4
ACGK
885
K15S-BS
1-1/2
1140
10.9
985
K2S-BS
2
1280
12.4
1215
G2S-BS
G
630
15.1
ACGD
1775
G3S-BS
3
950
21.8
1950
GC5S-BS
5
1030
24.2
ACGJ
2115
J5S-BS
J
830
26.0

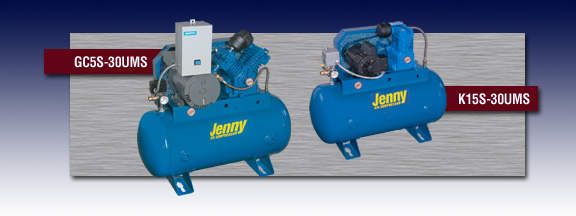

Jenny Fire Sprinkler Air Compressor - Models GC-5S-30UMS and K15S-30UMS


Tank Mounted
Additional Standard Features
  • Tanks are powder coated and ASME certified
  • Protectively mounted fittings
  • Manual tank drain(s)
  • Large canister intake filter with replaceable filter elements
  • Special unloading valves to assist in motor starting
  • Tank gauge
  • Pressure relief safety valve
  • Auto Start/Stop control with pressure unloader set at 25-40 PSI

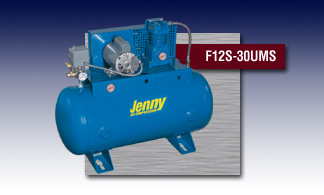

Jenny Fire Sprinkler Air Compressor - Model F12S-30UMS



Tank Mounted/30 Gallonon
System Size Maximum Gallons in system to be pumped to 40 PSI in 30 Minutes
Model
Pump
HP
 Power Supply Pump RPM CFM del'd @ 40 PSI

F

115 Volt
(through 2 HP)
230 Volt
1 Phase
208, 230,
460 or
575 Volt
3 Phase

220
F13S-30UMS
1/3
670
2.9
290
F12S-30UMS
1/2
950
3.8
350
F34S-30UMS
3/4
1200
4.4
425
K34S-30UMS
K
520
5.3
480
F1S-30UMS
F
1
1430
6.0
600
K1S-30UMS
K
790
7.4
885
K15S-30UMS
1-1/2
1140
10.9
985
K2S-30UMS
2
1280
12.4
1215
G2S-30UMS
G
630
15.1
1775
G3S-30UMS
3
950
21.8
1950
GC5S-30UMS
GC
5
1030
24.2
2115
J5S-30UMS
J
830
26.0

Options

  • ASME National Board tank Magnetic starter
  • 17 gallon tank
  • Vertical tank Low oil level switch
  • Oil sight glass Automatic tank drain
  • Air line filter Aftercooler
  • Dryer Control Group
